THIS HEAT PRESS MUST SHIP FREIGHT

Look for the gold upper platen cover—it's the mark of a genuine HPN TrueSpec heat press

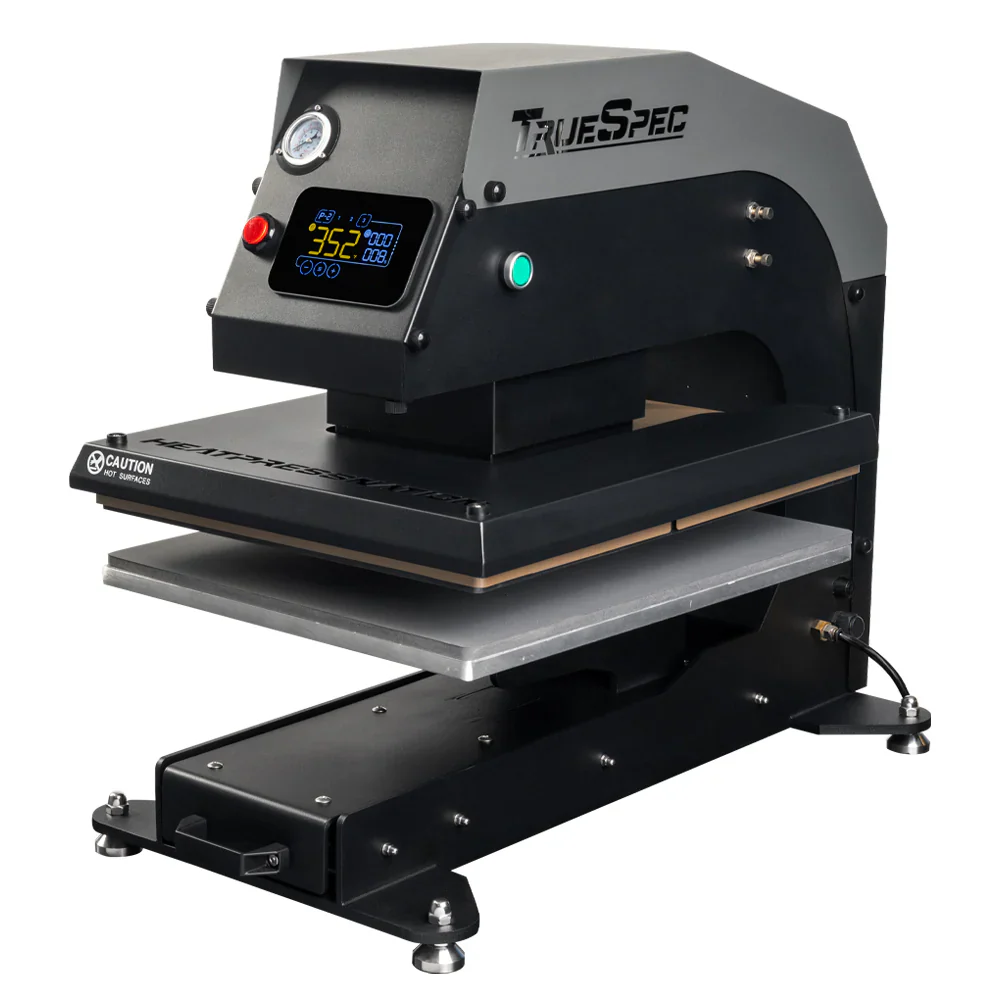

Introducing the TrueSpec 16" x 20" Auto-Open Hybrid Heat Press by Heat Press Nation – a revolutionary machine designed from the ground up to elevate your heat press experience. Built with a laser-cut steel frame for durability, TrueSpec is designed to withstand the rigors of any job. The heating element is our best yet – over 20% thicker than our Signature Series, with unmatched heat distribution and retention, plus an anti-burn shield for added safety.

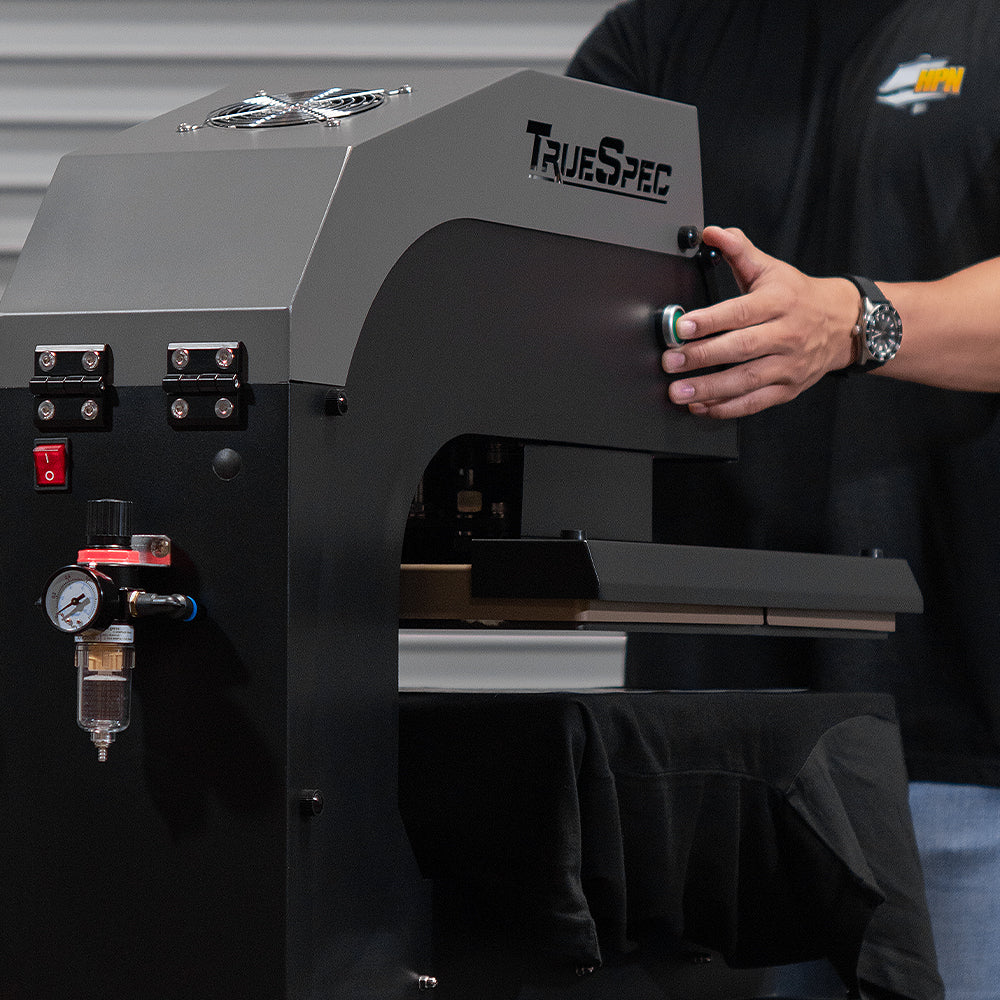

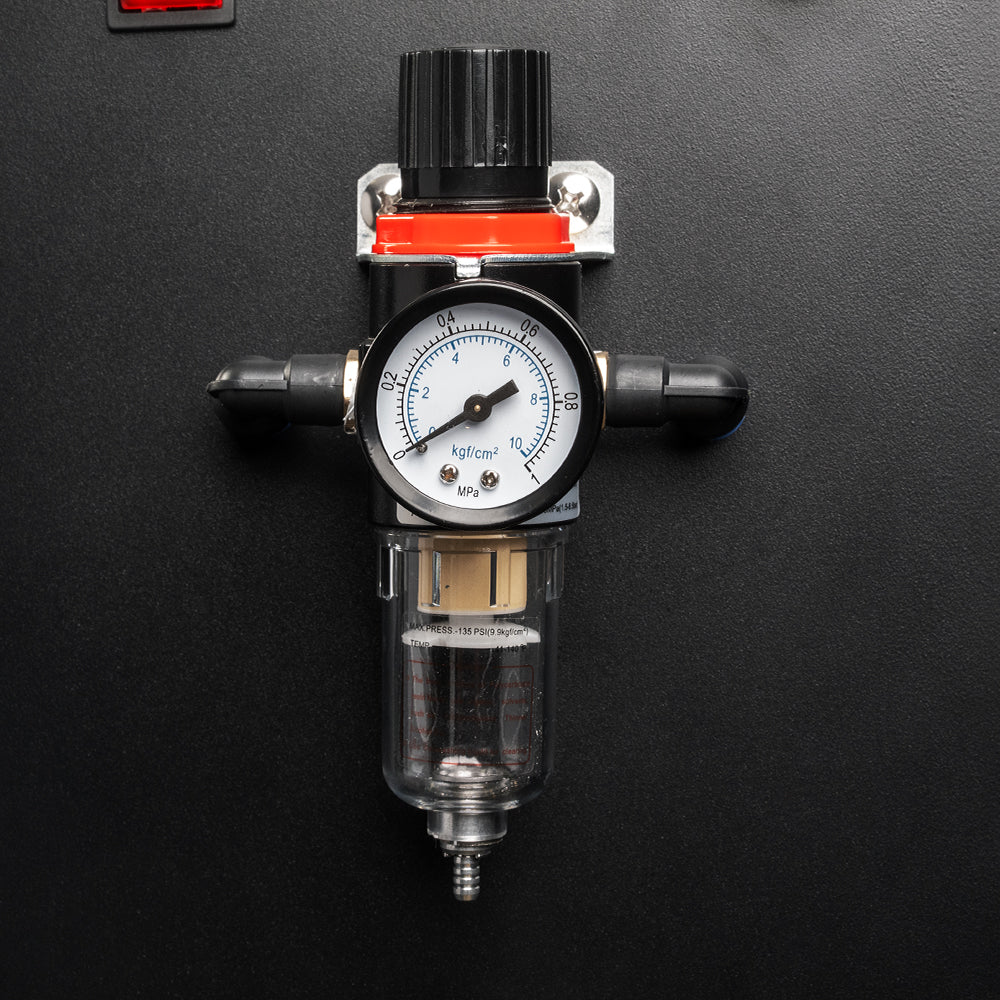

The HPN TrueSpec 16" x 20" Pneumatic Heat Press is our first pneumatic heat press! Simply set the pressure to the desired PSI using the knob on the control panel, and then press a button to lower the heating element onto your item. Once the timer reaches 0, the press will automatically open - all this is powered by an air compressor (sold separately). This eliminates the physical effort required to open and close the machine, which drastically reduces operator fatigue. This is an incredible leap forward in consistency since your transfers will now get the same time, temperature, and pressure applied EVERY TIME - no matter who is operating the machine.

TrueSpec’s advanced features take personalization and ease of use to a new level. The redesigned computer box houses a touchscreen control panel with real-time pressure readout, three preset slots for your favorite settings, and a convenient built-in backup fuse for peace of mind. With the option to switch between interchangeable lower platens, TrueSpec offers ultimate flexibility. Plus, the slide-out lower platen ensures both safety and efficiency – no more reaching in and risking burns. Elevate your business with the power and precision of the TrueSpec Heat Press.

*A 10 gallon 2 HP air compressor required for usage (not included)*

FEATURES

	Pneumatic Operation: This advanced feature utilizes compressed air (air compressor sold separately) to automatically lower and raise the heating element. This reduces manual effort and ensures flawless, uniform results every time. Perfect for high-volume production.

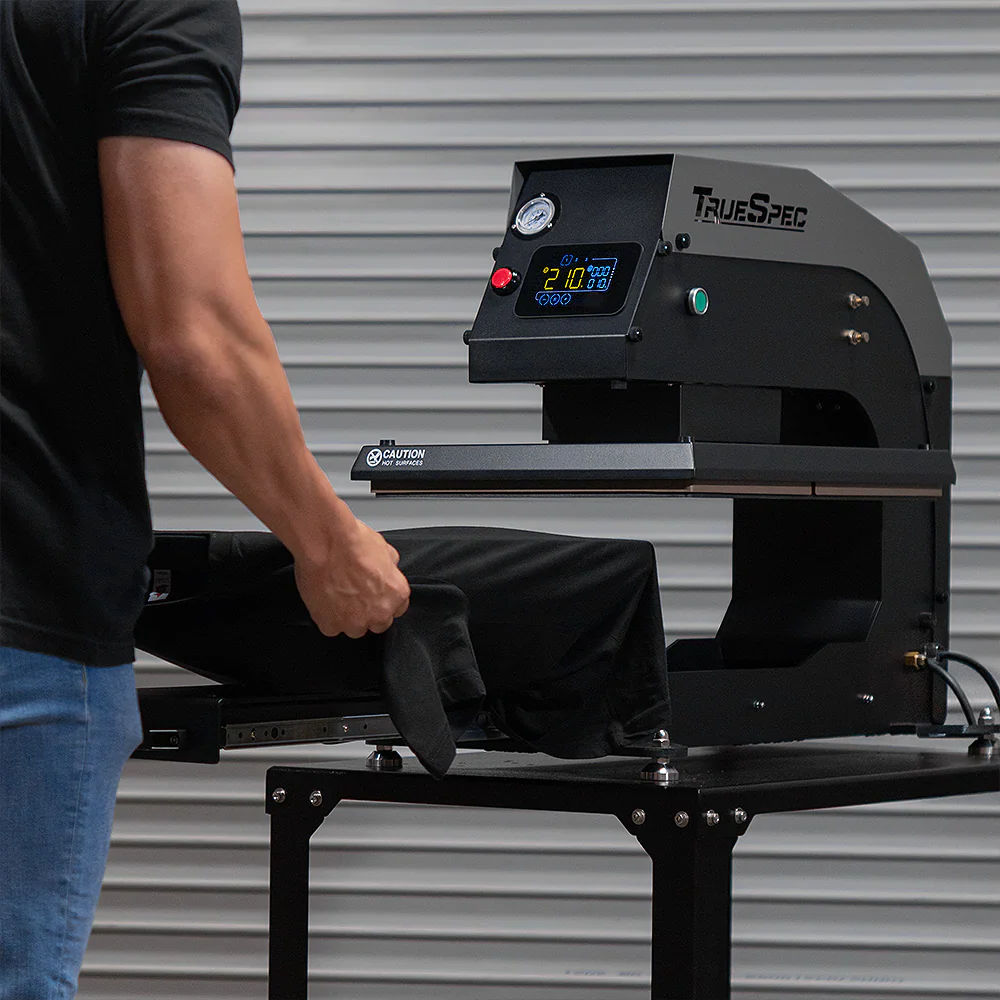

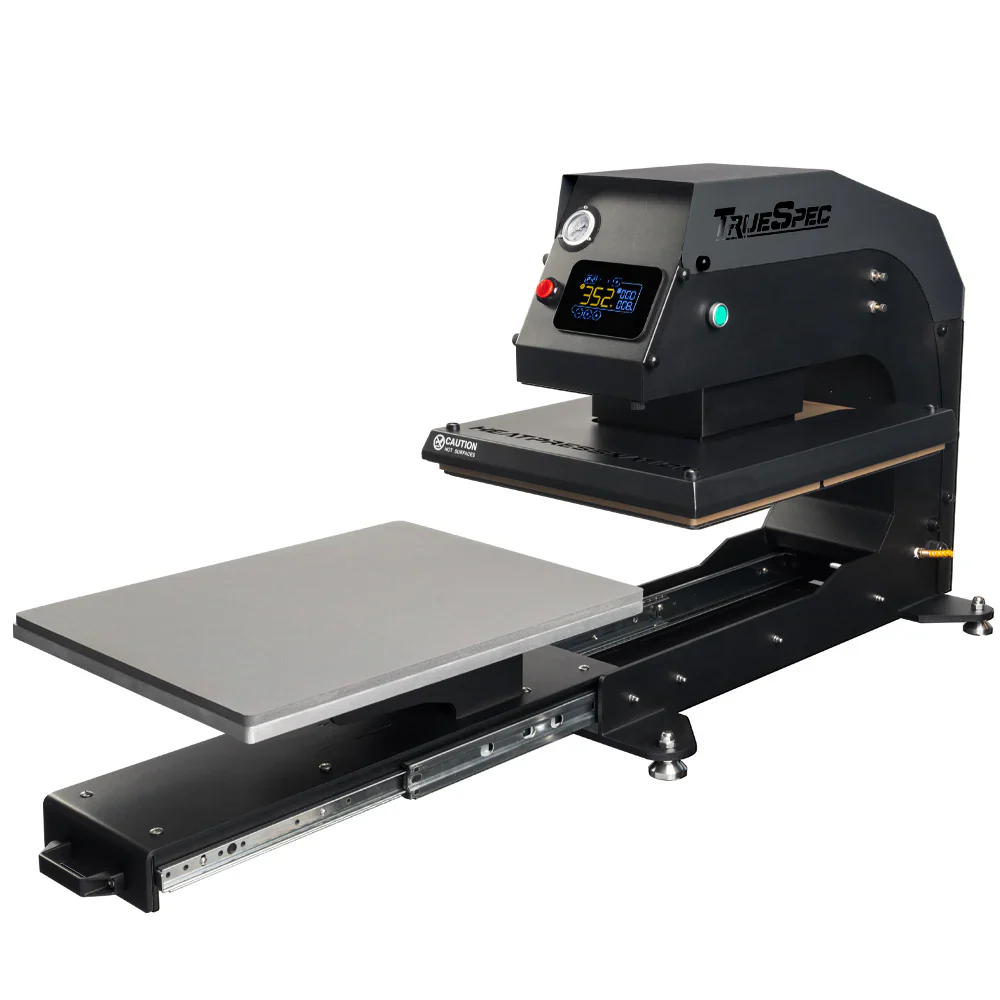

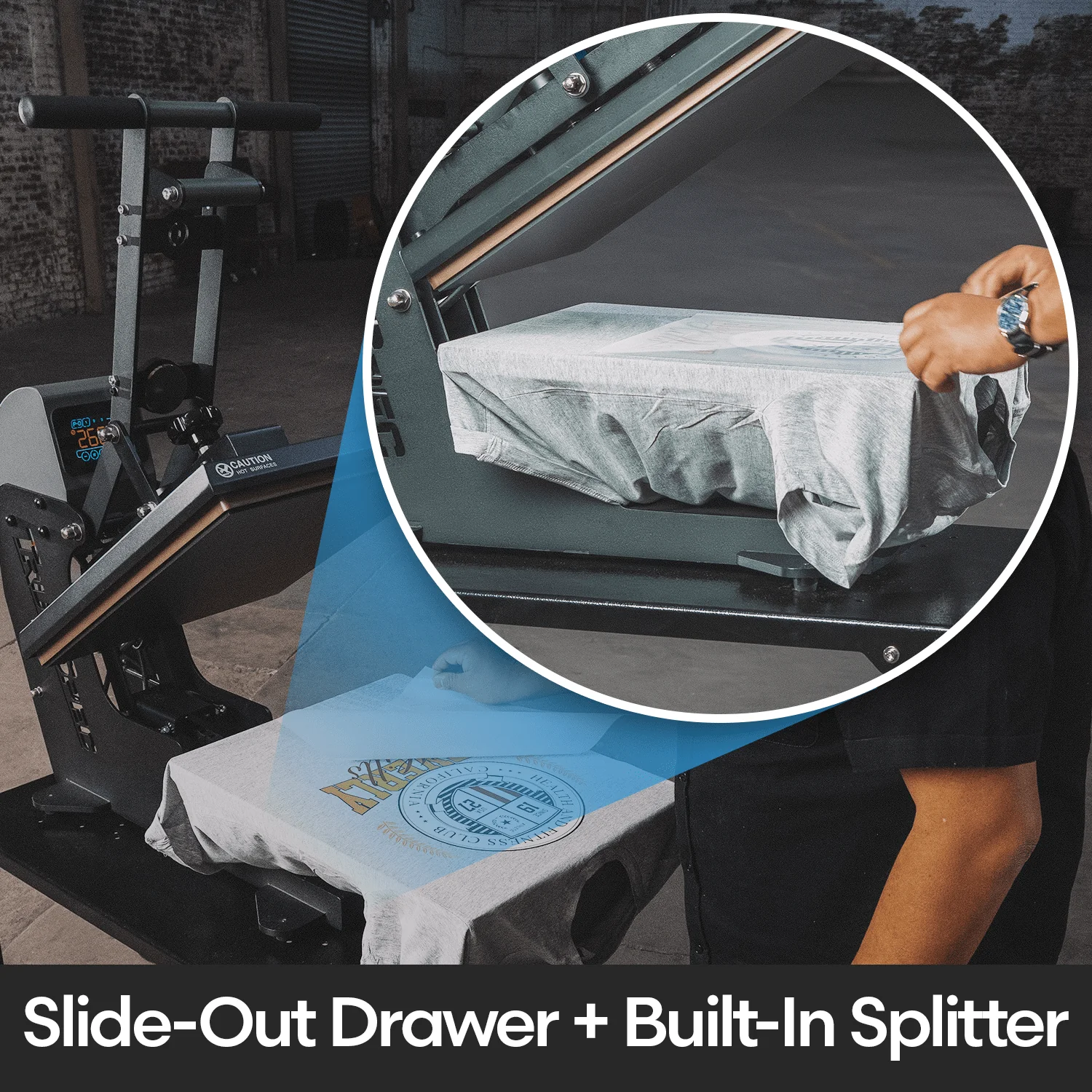

	Drawer Style Lower Platen: The drawer style lower platen allows you more space to lay down your transfer material without having to put your hands directly underneath the heat. This feature provides you with increased safety while maintaining the compact nature of a clamshell heat press.

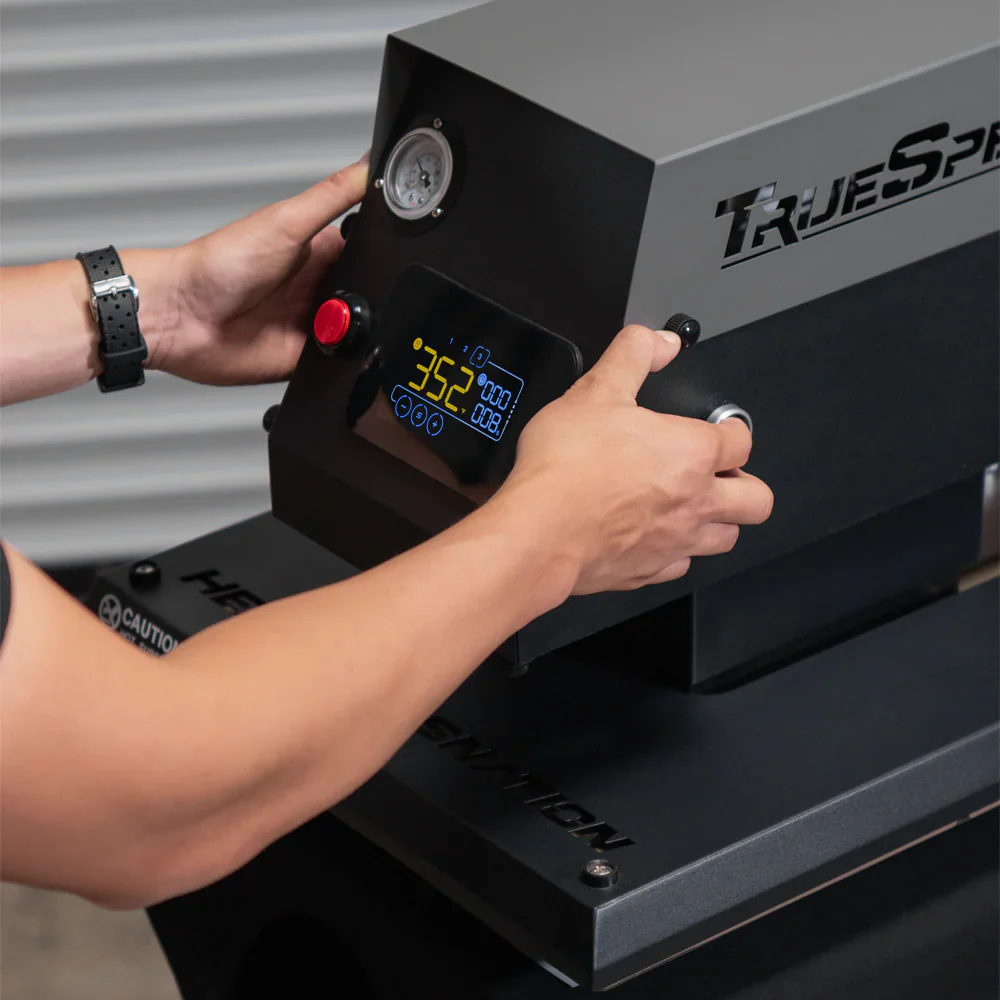

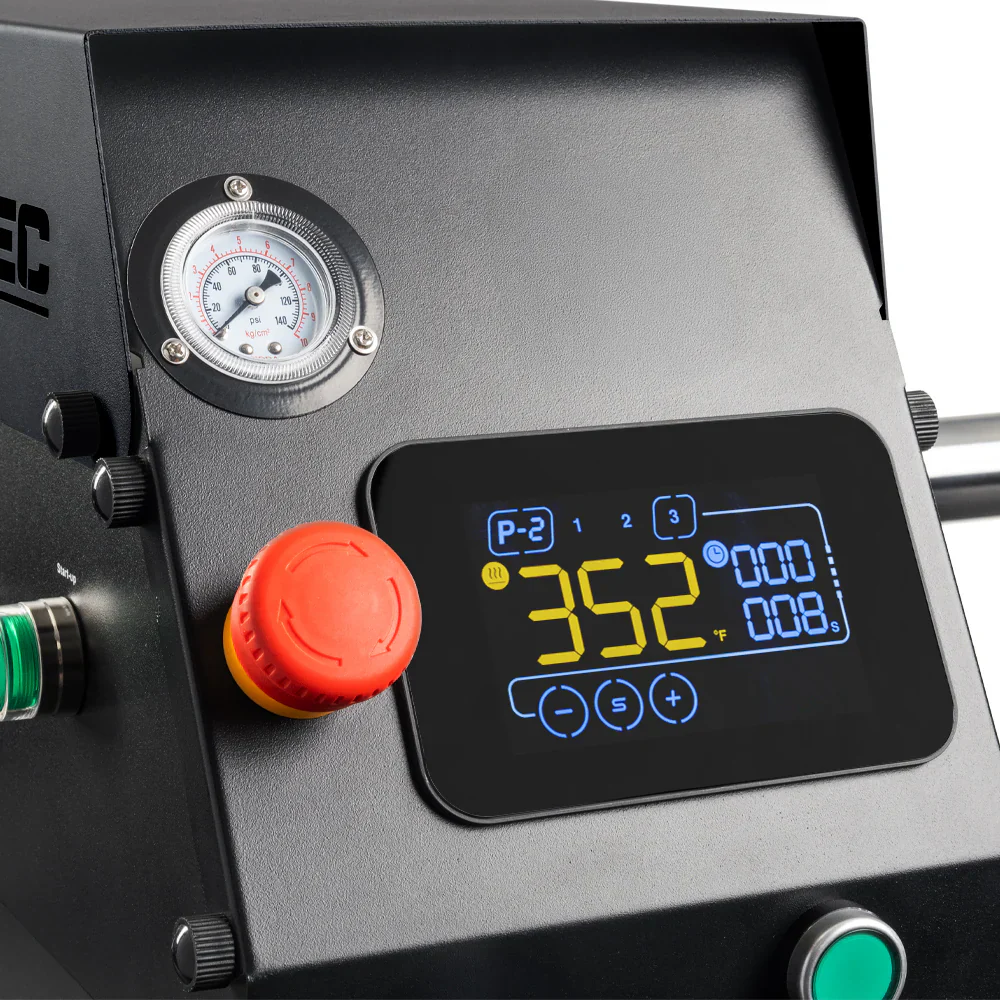

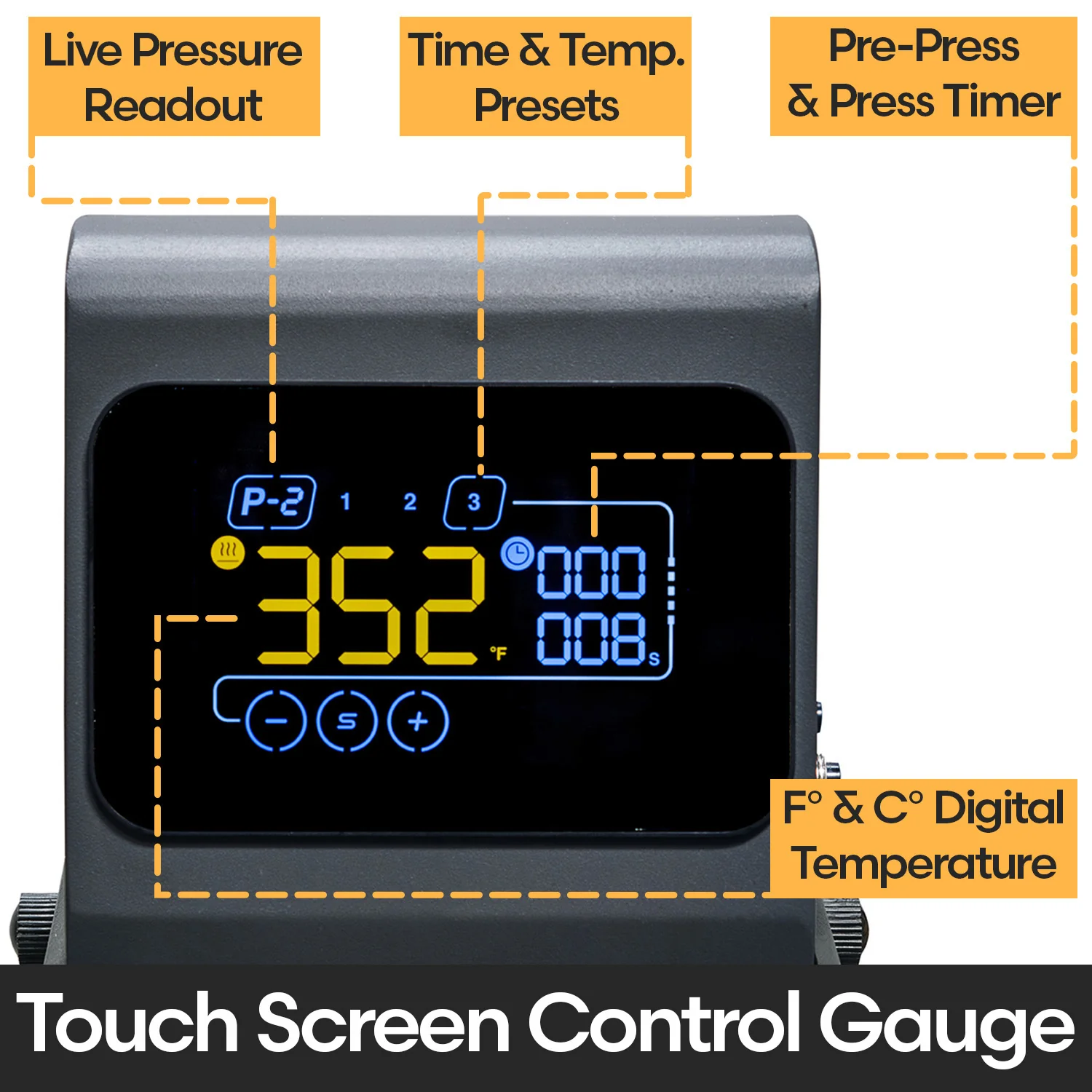

	Upgraded Time/Temperature Gauge: HPN TrueSpec features a completely redesigned computer box. The gauge is a touchscreen with an Active Pressure Readout, 3 Preset Slots for time/temp recall, and a new pre-press timer.

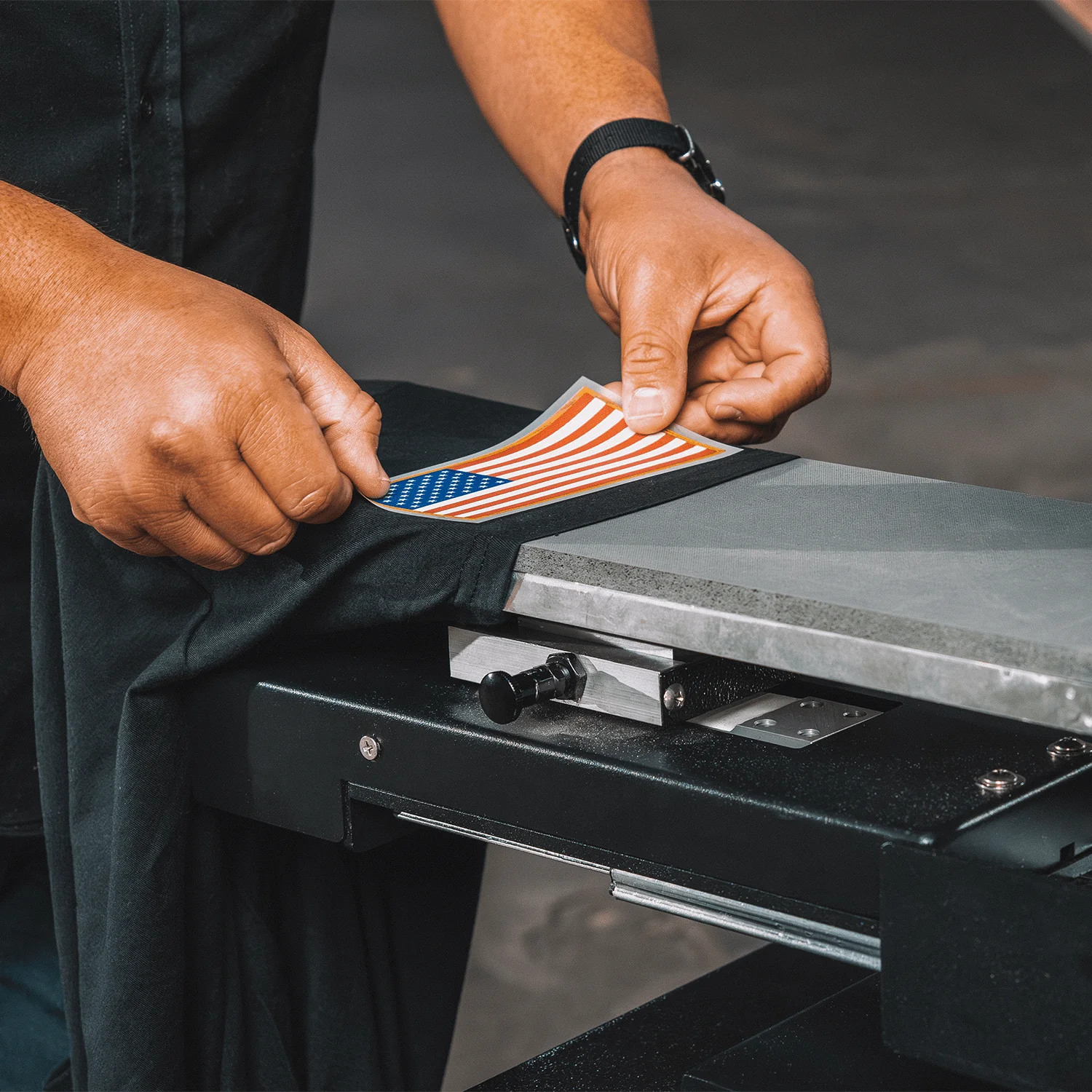

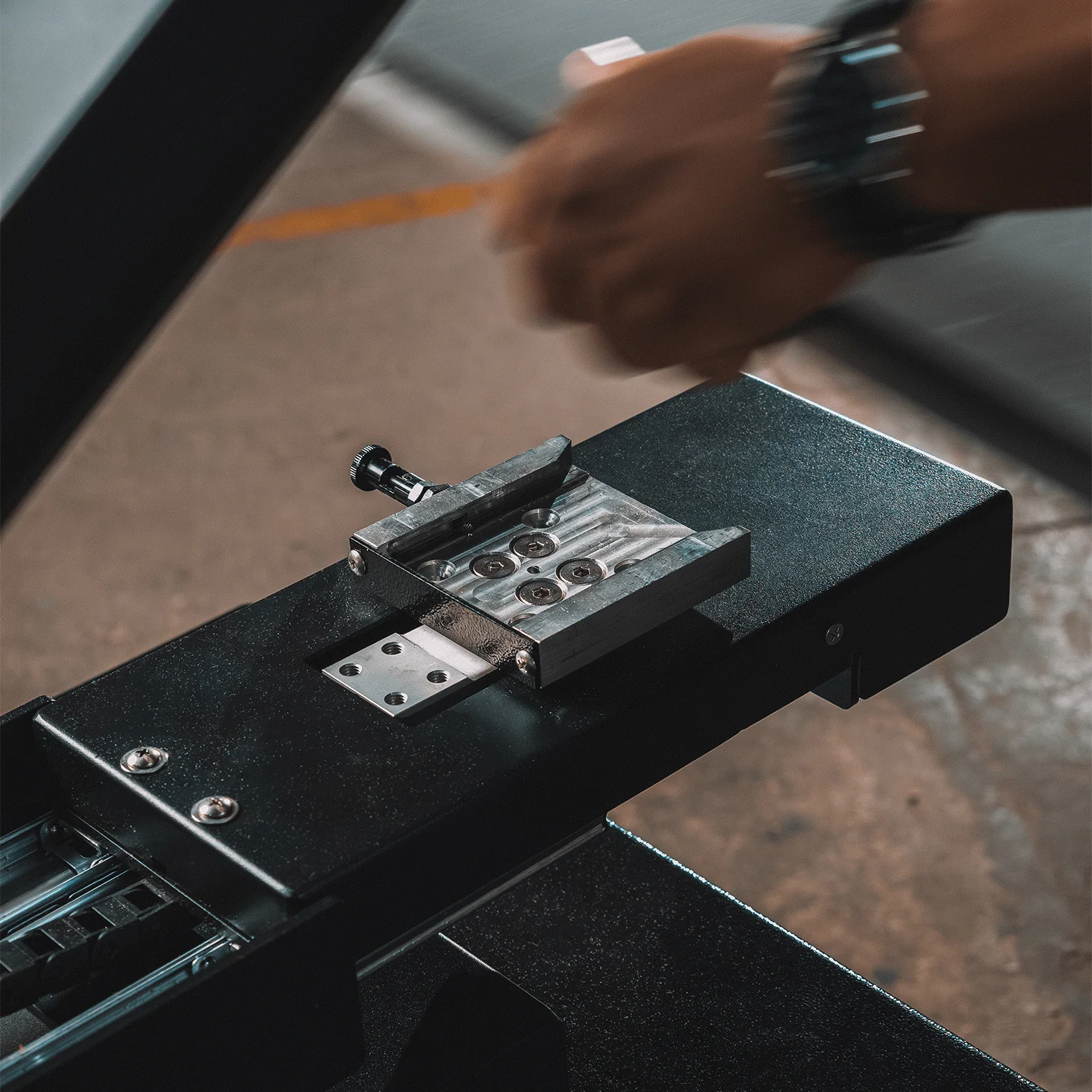

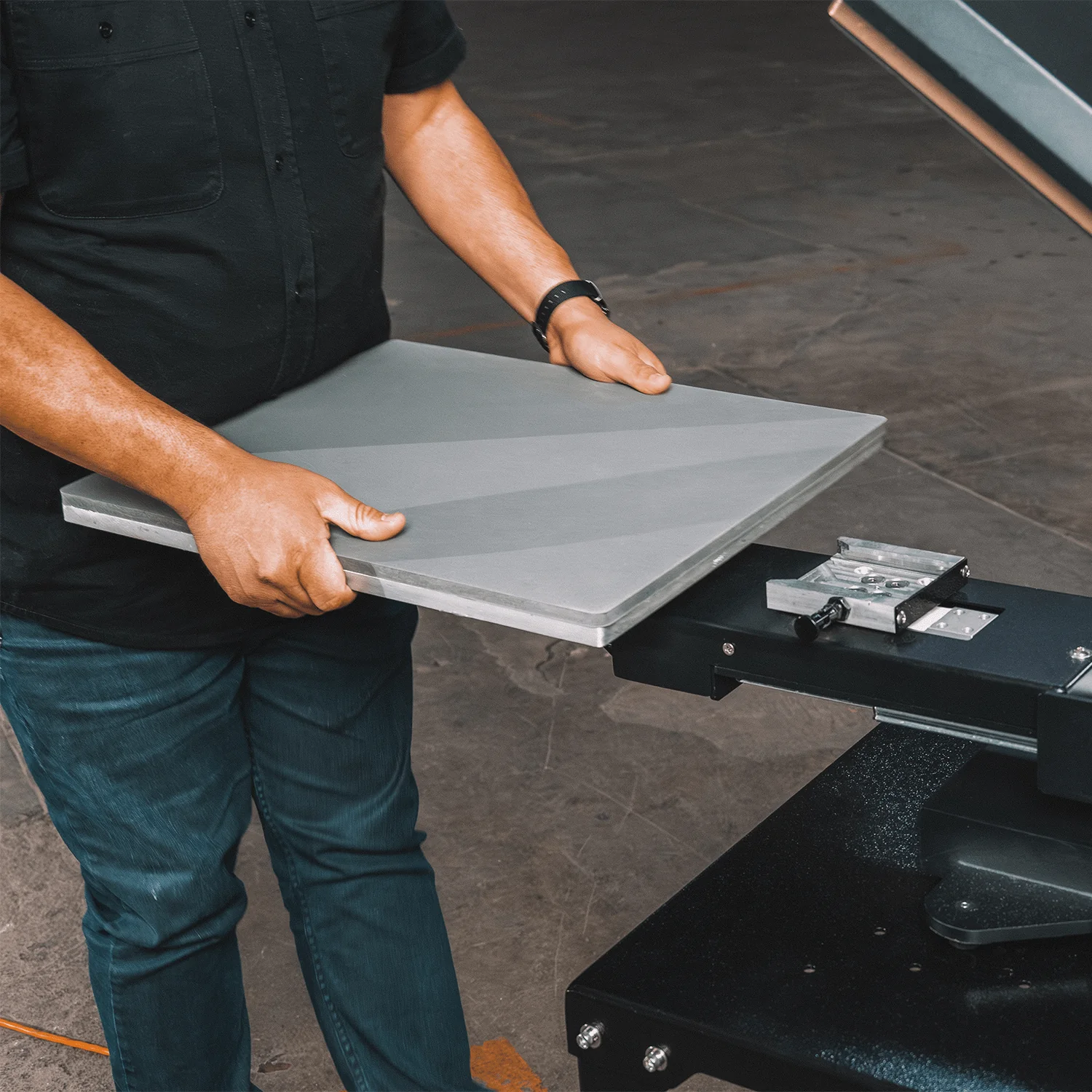

	Fast Fit Platens for TrueSpec: The HPN TrueSpec heat press can handle any job with its interchangeable lower platens. Available in 4" x 4", 6" x 10", 8" x 10", 6" x 20", and 11" x 15", these platens also come with a unidirectional mount so they can be orientated in both landscape and portrait. Sold separately.

• Industrial-Grade Laser-Cut Steel Frame
• Solid-Core Heating Element - 20% Thicker than the Signature Series
• Pneumatic pressure adjustment
• Auto-Release Button

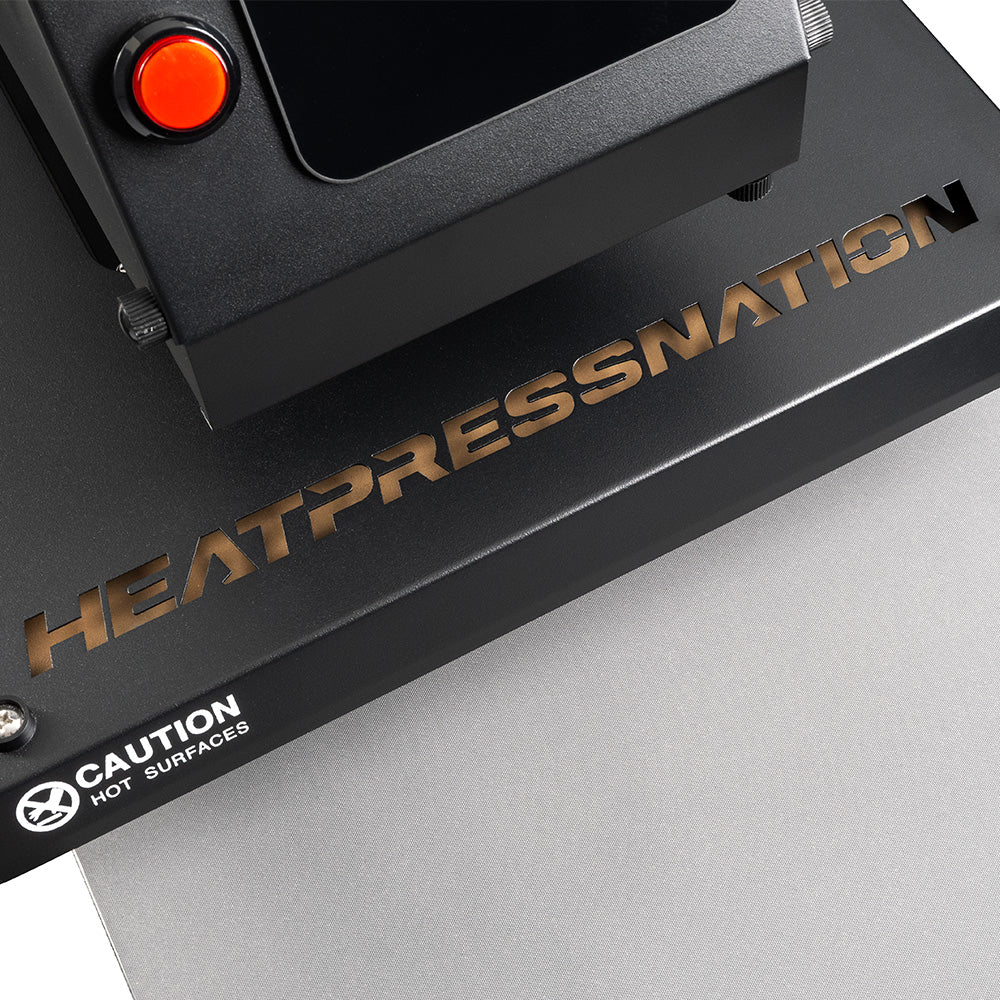

• Anti-Burn Shield Cover

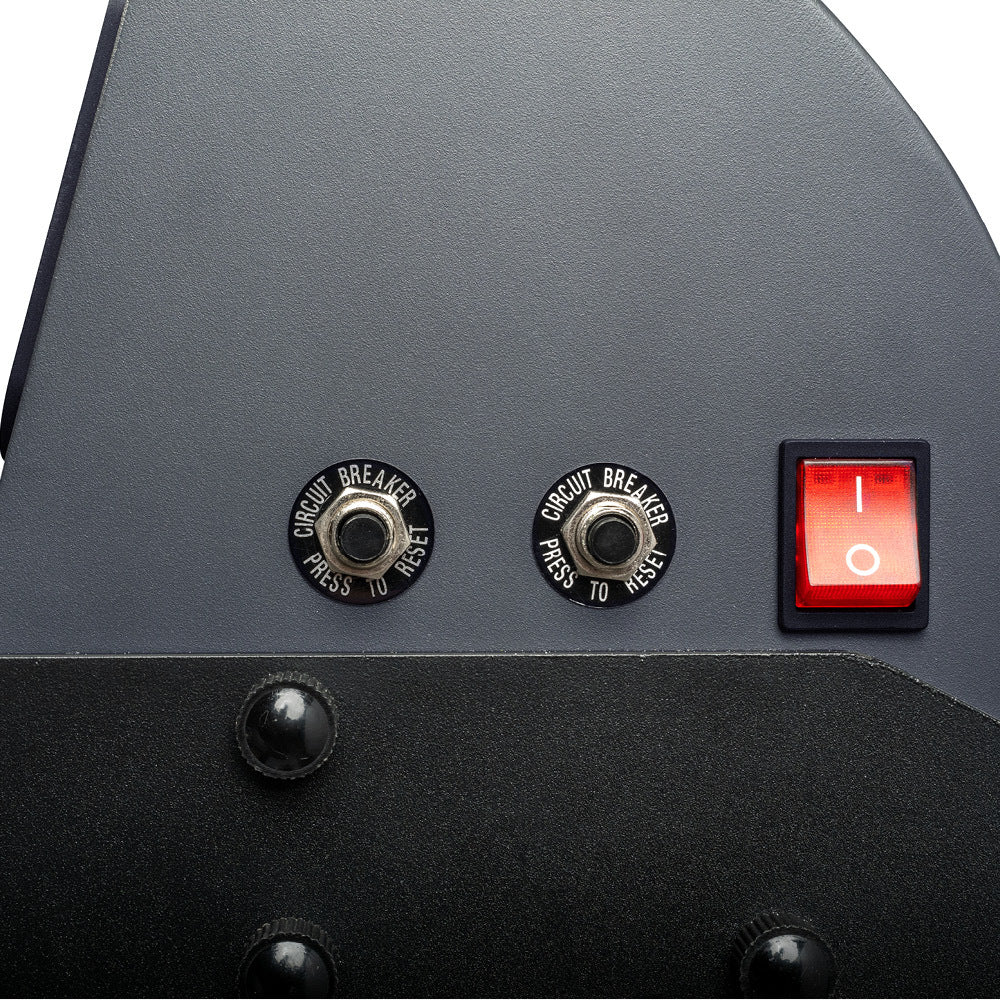

• Dual-Circuit Protection
• Select UL Certified Components
• 16" x 20" Baked-On, Non-Stick Coated Heat Platen
• T-Shirt Splitable
• Lifetime Technical Support
• Lifetime Warranty on the Heating Element (Full Warranty Details)

SPECIFICATIONS

• Heat Press Style: Pneumatic
• Heating Element Size: 15.75" x 19.75" (L x W)
• Gauge Reading: Fahrenheit or Celsius degree measure
• Voltage: 120V
• Power Rating: 1700W/14 Amps
• Maximum Temperature: 437º F
• Time Range: 0-999 Seconds
• Base Dimensions: 28" x 15.5"
• Machine Weight: 165.3 lbs
• Machine Dimensions: 17.5" x 26" x 34" (W x H x D)
• Shipping Weight: 253.5 lbs
• Shipping Dimensions: 40" x 22.8" x 32.8"

• Maximum Item Thickness: 1.25"
• A 10 gallon 2 HP air compressor is required for use (not included)

===
